Segmented buttons are a group of connected buttons that allow users to select one or more options from a set.
🧱 Gridding Rules
You can place the Segmented Button element alone in the row using a flexible grid system.
Max |
60 grids |

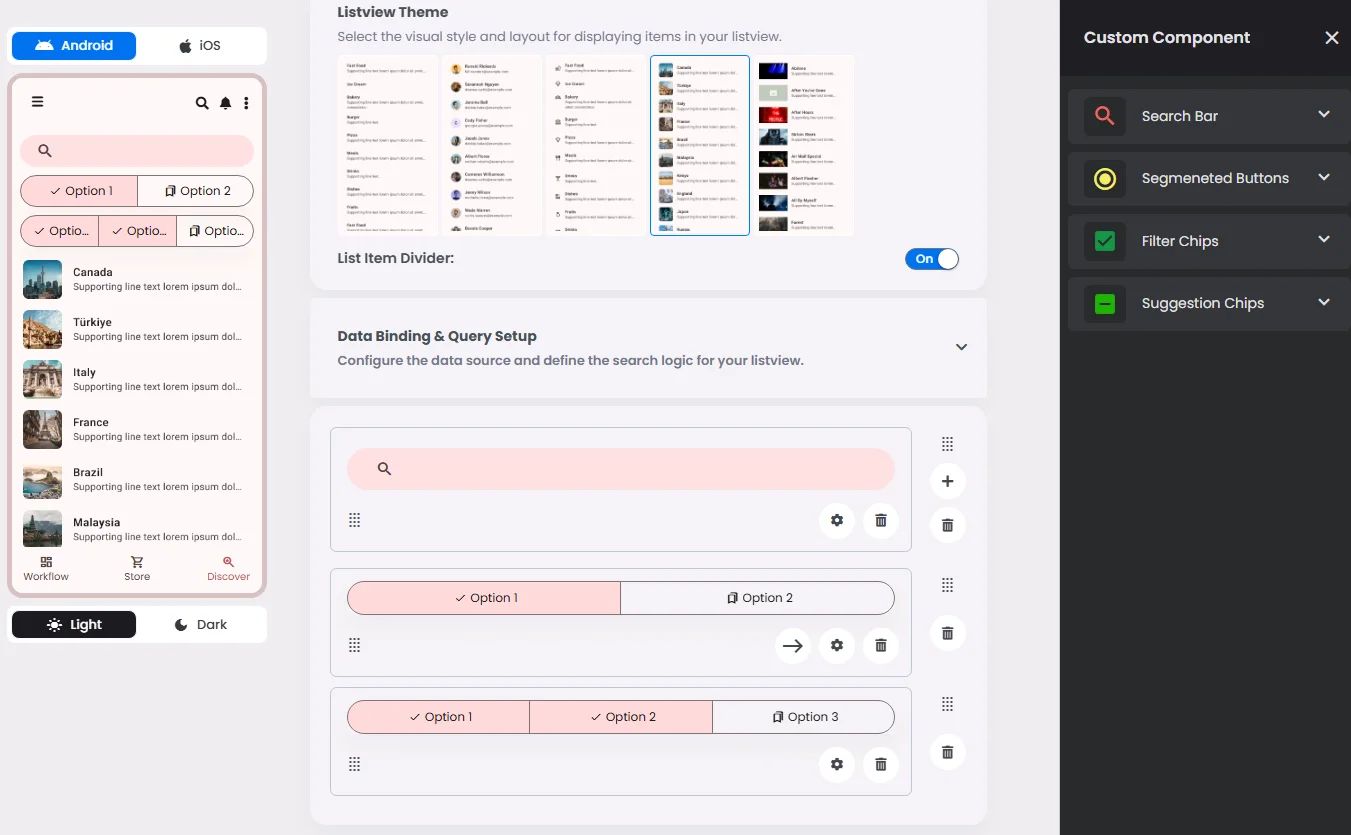

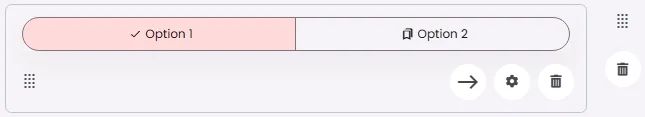

⚙️ Applicable Settings
The following table outlines the available configuration options for this element. Each setting defines how the element behaves or appears within your app’s UI.
Field | Description |
Label | The main label for form fields like inputs or dropdowns. |
Icon | An icon shown at the start (left side) of the cell. |
Custom Color | controls the color styling of text or divider. |
Cell ID | This is the unique name for the cell. It's used to find or manage the cell later. If both cell_id and callback are provided, the system will use cell_id. |
Callback | This is the action name linked to the cell when a user interacts with it. You must add this when creating the cell. Once the cell is saved, this value can’t be changed. |
Cell Order | This controls where the cell appears inside the row (from left to right). Like callback, it must be set when creating the cell and can’t be changed later. |
Form | The type of the element. You must choose this when creating the cell, and it can't be changed later. |
Style | The visual style of the element (e.g., filled, outlined). You need to set this when creating the cell, and it can't be changed after saving. |
Version | A system-generated version number that updates automatically whenever the cell is changed. |
Prefix | Text that appears at the beginning of an input field (before the user's input). |
Options | A list of choices is shown to the user in dropdowns, radio buttons, or multi-select elements. Only needed for cells that require selection. |
Value | The default or current value for the cell (like a pre-selected option). |

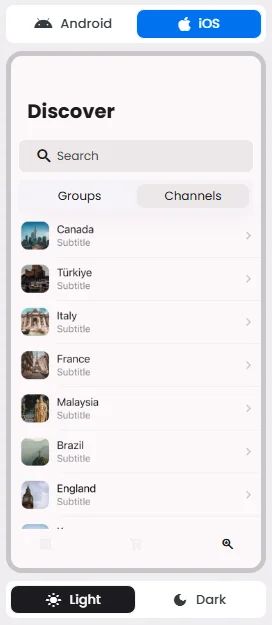

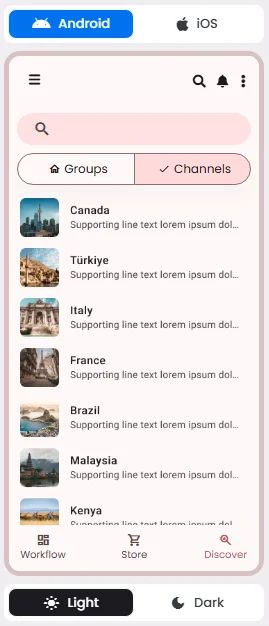

📱 Android & iOS Interface
The Segmented Button element adapts its appearance and layout behavior based on the platform to align with native UI guidelines:
👇🏻 Action (onClick)
Element | Purpose | Supports Actions | Notes |
Segmented Buttons | To let users select one or more options from a connected group. | ❌ | Used to trigger query logic through value matching. Selection only, not action-executing. |

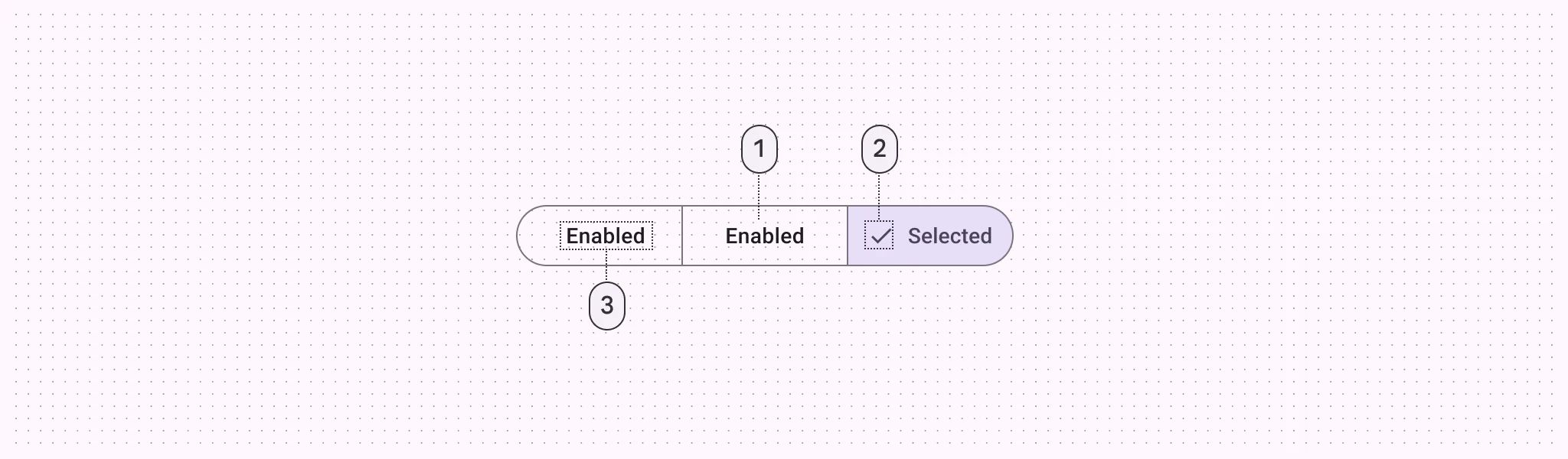

🃏 Segmented Buttons Style Overview
Segmented buttons are grouped selection controls that allow users to toggle between related options, switch views, or sort elements within a single horizontal layout.

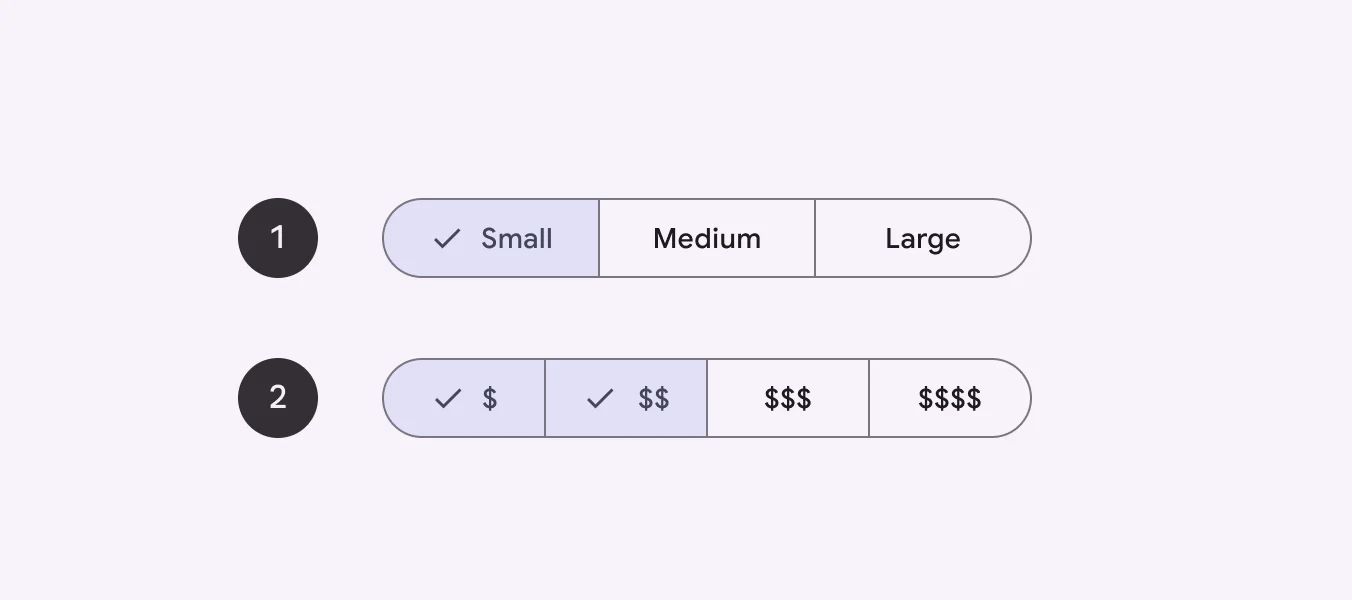

There are two types of segmented buttons: Single-select & Multi-select.
Single-select
🧰 Usage

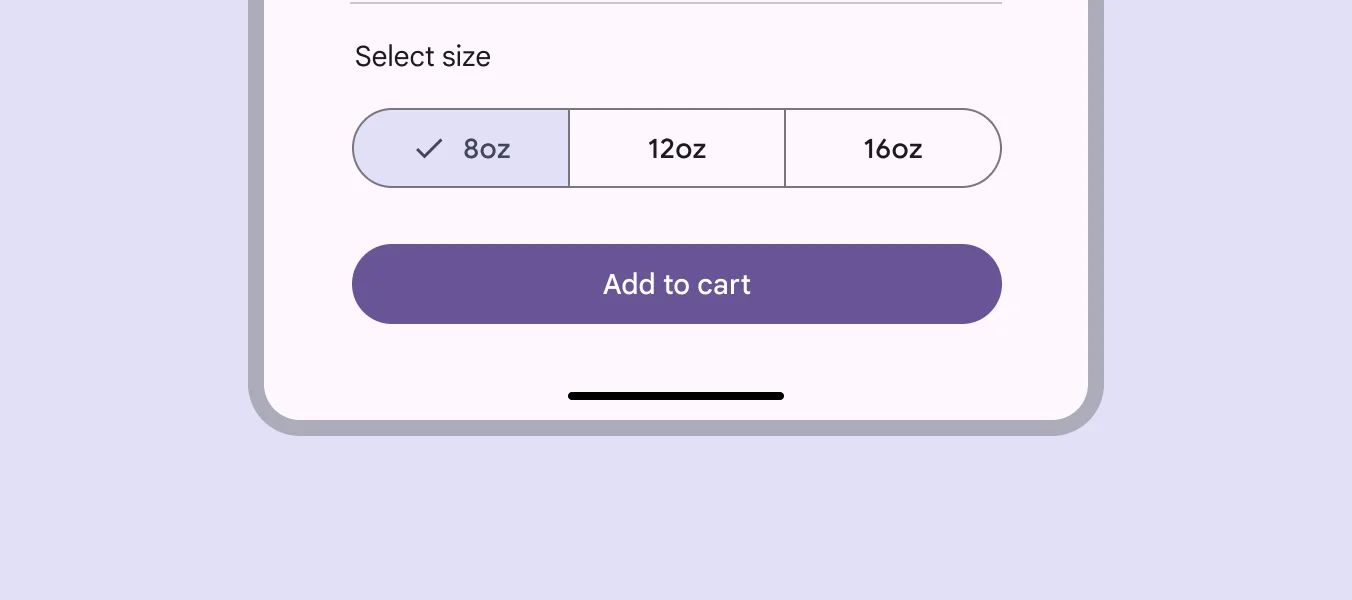

Use a single-select segmented button to select one option from a set.
Multi-select
🧰 Usage

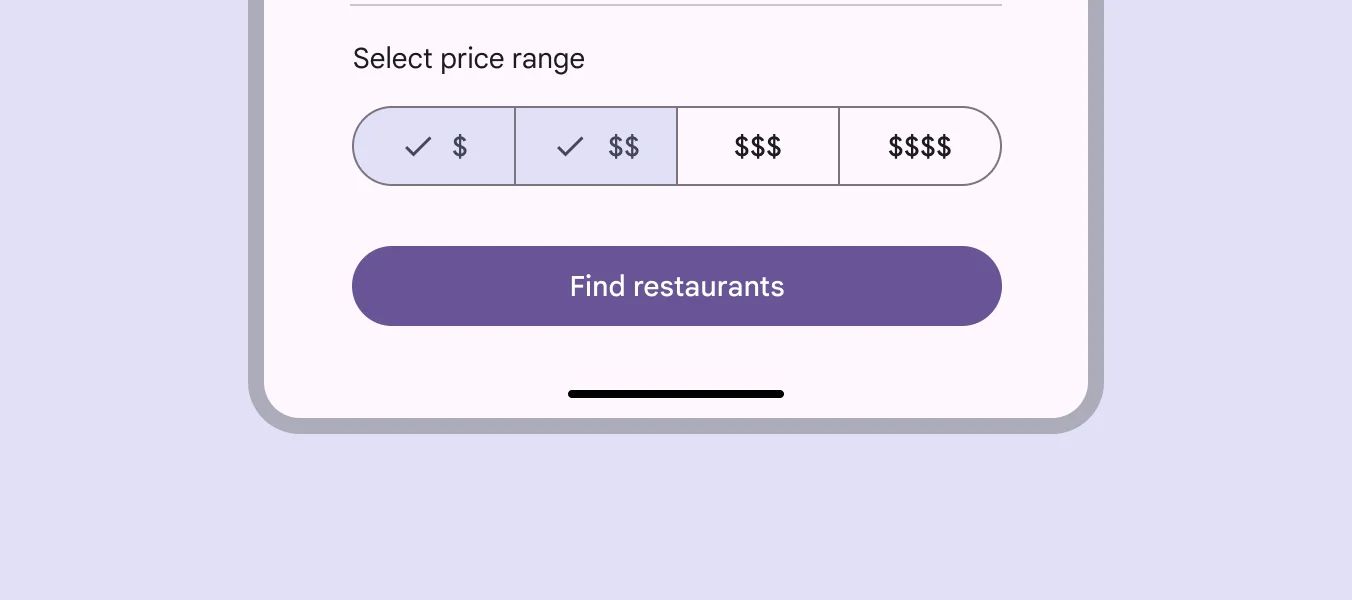

Use a multi-select segmented button to select or sort from two to five options, unlike single-select.
